liner mechanical rails

Add to wishlist
Share

    liner mechanical rails



    liner mechanical rails

    single head / duble Head

    ست مکانیکی خطی تک و دو هد
    liner mechanical rails



    Specification:

    High accuracy for long term work
    Low friction resistance
    High body stiffness with four-way load design
    Suitable for high speed work
    Easy installation with interchangeability

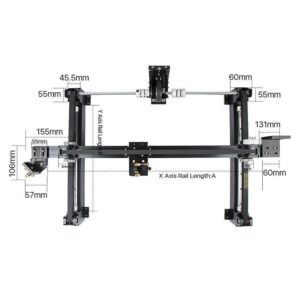

    Product dimensions

    ابعاد ست مکانیکی خطی تک و دو هد
    Dimensions of single and double linear mechanical set



    انواع ست مکانیکی خطی تک و دو هد
    Types of single and double linear mechanical sets



    ■ In general, the length of the X-axis is longer than the Y-axis. If you need a longer Y axis than an X axis, you can place your order by phone.

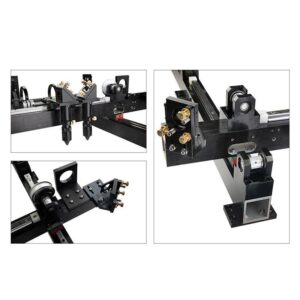

    Linear mechanical set structure

    جزییات مدل تک و دو هد



    Introduction of parts

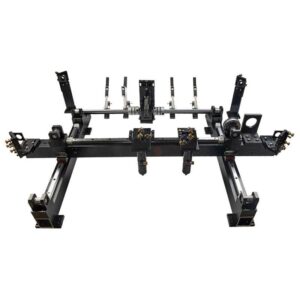

    Single and double head models

    معرفی قسمت های ست مکانیکی خطی
    Introduction of parts



    No The name of the piece unit Number (in single head model) Number (in two-head model)
    1 The first mirror base Pcs 1 2
    2 Laser tube holder (50-80 mm) Pcs 2 4
    3 Transmission Shaft set Set 1 1
    4 coupling  12mm Pcs 2 2
    5 motor base Y Set 1 1
    6 the second mirror mount Pcs 1 2
    7 synchronous wheel base Pcs 2 2
    8 Linear guide rail for the X-axis Pcs 1 1
    9 Linear guide rail for the Y-axis Pcs 2 2
    10 Laser head set Set 1 2
    11 Sliding blocks Pcs 3 4
    12 teeth Gear (6.35 / 8/12 mm) Pcs 2 2
    13 motor base X Pcs 1 1



    Attention

    Dimensions of this product can be ordered to your liking.

    The holding range of the laser tube is 50/80 mm.

    Step motors have the ability to exit.

    The focus size of the laser head is 50.8 / 63.5 / 101.6 mm.
